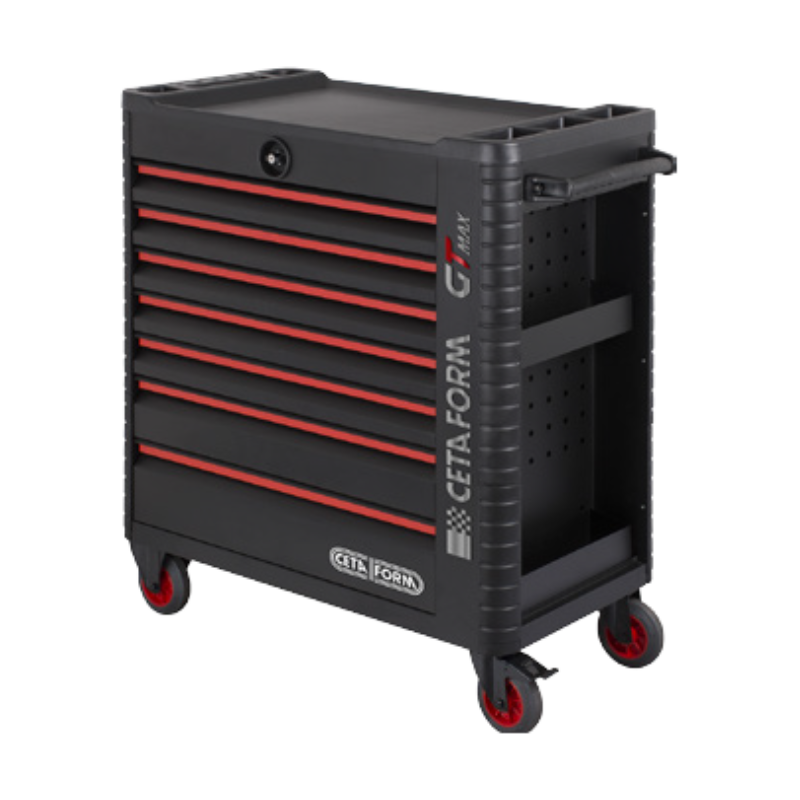

GT-MAX Jumbo Roller Cabinets (Empty)
£0.00
Ceta Form Tool Cabinets are very high quality, manufactured using heavy gauge steel and scratch-proof mat powder coating. GT-Max Jumbo Roller Cabinets are our deluxe range of tool cabinets featuring plastic protection on all corners and an anti-tilting system which allows only 1 drawer to be opened at any one time. GT-Max Jumbo Roller Cabinets accommodate 4 foam system modules.
Product Variations
| SKU | Number of draws | Draw size | HxWxD / mm | Weight (kg) |

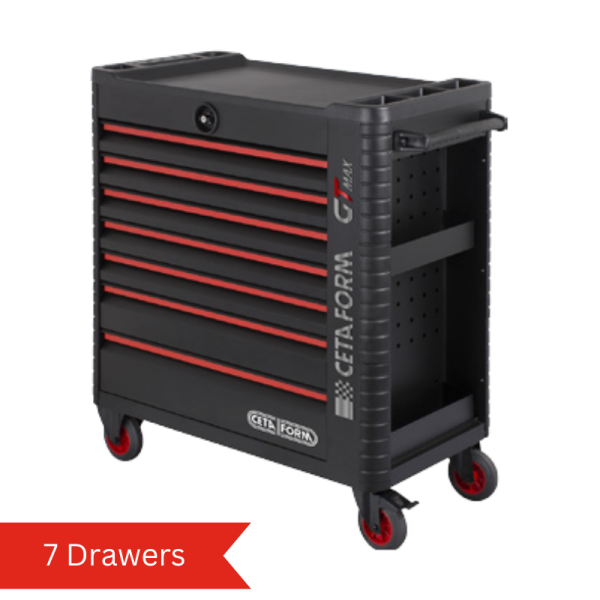

| A01M-07J | 7 | 5x type 1, H: 70 mm 1x type 2, H:110 mm 1x type 4, H:135 mm |
1018x922x458 | 77 |

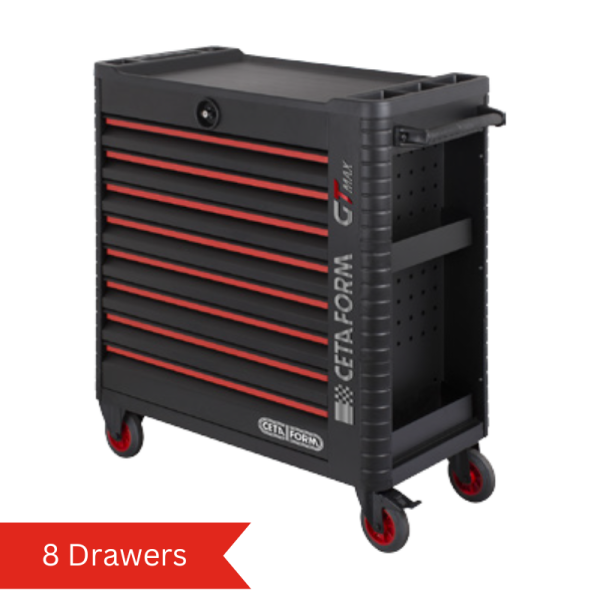

| A01M-08J | 8 | 7x type 1, H: 70 mm 1x type 3, H: 90 mm |
1018x922x458 | 80 |
Product Description
Body:
• Torsion resistant profile construction from heavy gauge steel
• Corrosion resistant and scratch-proof mat powder coated
• Built-in side panel with Euro perforation for mounting optional accessories
• Plastic protection on all corners against impacts
• High quality ABS Workshop, housings for screwdrivers and small parts
Drawers:
• Central locking with cylinder lock
• Individual drawer lock system on each drawer to prevent unintentional opening
• Anti-tilting system which prevents opening of more than 1 drawer at a time
• Low friction telescopic ball-bearing slides allowing 100% opening of drawers
• Load capacity per drawer: 25 kg (50 kg for h 210 mm drawers)
Wheel System:
• Two fixed and 2 swiveling (one with brake) wheels, Ø125 mm
• High quality TPU material resistant to chemicals
Accessories:
• Can be equipped with Ceta Form CFS Tool Modules
• Compatible with an extensive range of accessories
• Delivery with 2 pieces of A01M-CH spray can holder
Product Specifications
| Range | GT-MAX |
|---|---|
| Number of Drawers | 7, 8 |
| Drawer Internal Dimensions | 702 x 385 mm |
| Standard or Heavy-Duty | Heavy-Duty |
| Load Capacity | 400 kg |
| Top Tray | Moulded ABS |
| Width | 922 mm |
| Depth | 458 mm |
| Wheel Diameter | 125 mm |
| Anti-Tilting System | Yes |
| Plastic Bumper Protection | Yes |
Private Label
Ceta Form can offer a wide of range of tools under your brand and livery. Tool cabinets can be personalised with bespoke paint colour for the frame and drawers, complete with your brand name/logo. Castors are available in various colours.
